Single Axis Pedestal

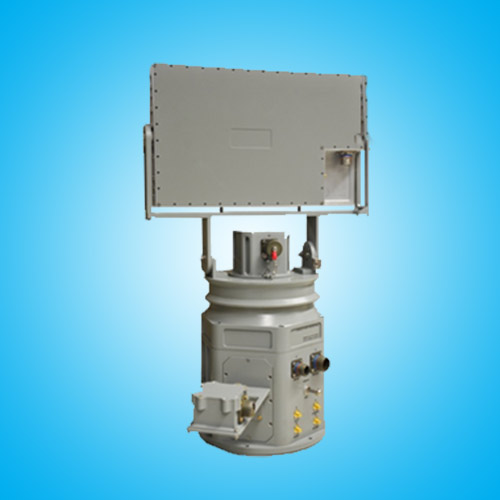

Jisnu’s ultra-Low-Weight Single Axis Auto Tracking Pedestal is built for continuous rotation in Az for a payload of up to 6 Kg. The system rotates at a velocity of 15 deg/sec with acceleration of 15 deg/sec. The-state-of-the-art digital control system is built inside the pedestal with all the requisite algorithms suitable for full auto track application. The system is easily operable through a laptop with high-end user interface.
This man portable auto track system is maintenance free, compact and easy to install and operate in remote area with battery pack.
- Single Axis Az Continuous rotation
- Low Weight and Compact
- Built-in Controller and Tracking Demodulator
- Single channel Mono-pulse Auto Tracking
- Built-in Tracking Receiver (Optional)
- MIL-STD 461E & JSS-55555 Compliant
- Maintenance free and easy to install

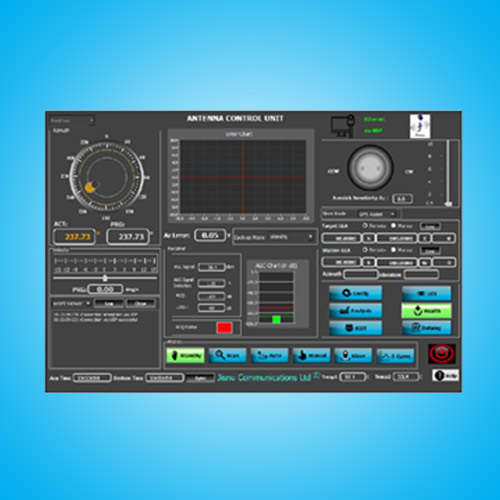

- User friendly GUI
| Functional | |
|---|---|
| Motion | Single Axis - Continuous Az |
| Azimuth Rotation | 360º Continuous |
| Elevation Rotation | Manual Elevation tilt Adjustment of 0º to 25º in Steps of 5º |
| Position Sensor | Absolute Encoder |
| Pointing Accuracy | ±1º |
| Position Resolution | ±0.5º |
| Velocity | 15 deg/sec |
| Acceleration | 15 deg/sec |
| Backlash | 0.5º |
| Payload | ≤ 6Kg’s |
| Motor | Servo Motor |
| Rotary Joint | 2 channels |
| Slip Ring | 24 channels |
| Digital Compass | For true north alignment |
| Track Acquisition | Mono pulse patch antenna |
| ACU Modes | Standby, Slew, Position, Point, Slave Position, Slave GPS, Auto Track, Search, Configurable |
| Analog Input | Error & AGC |
| Pedestal Interface | Ethernet/RS 422 |
| Electrical | |
|---|---|
| Power Input | 28 V DC 3A max |
| Mechanical | |
|---|---|
| Pedestal Weight | ≤ 10kg |
| Environmental | |
|---|---|
Temperature
|
|
Wind
|
|
| Humidity | 90% RH Non-Condensing |
| Environmental Compliance | JSS-55555 |
| EMI/EMC compliance | MIL-STD-461E |
